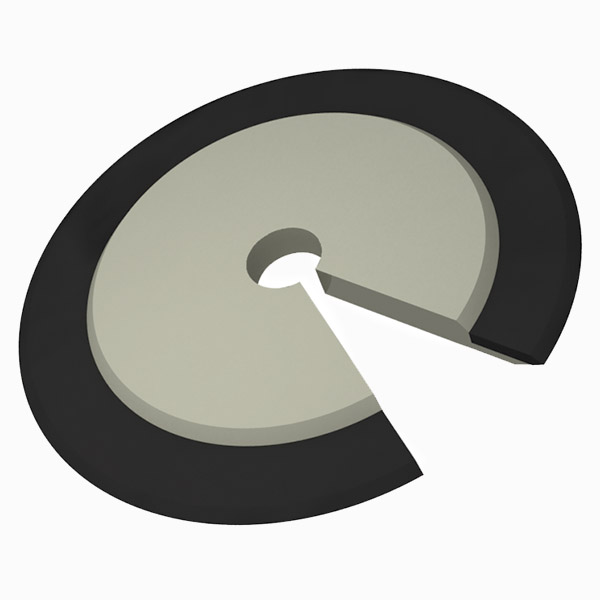

1E6Q
Application:
Thread grinding.
Thread grinding

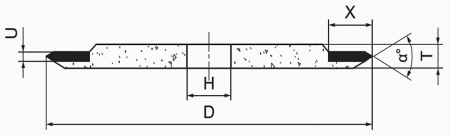

Specifications
| D | T | H | X | U | αº |
|---|---|---|---|---|---|
| 80 | 6 | 20 | 10 | 3 | 40°; 60°; 90° |
| 100 | 8 | 20 | 10 | 3 | 40°; 60°; 90° |
| 150 | 8 | 32 | 10 | 3 | 40°; 60°; 90° |
| 250 | 8 | 76 | 10 | 3 | 40°; 60°; 90° |
| 350 | 8; 10 | 160 | 10 | 3; 4 | 40°; 60°; 90° |
| 400 | 10 | 203 | 10 | 4; 6 | 40°; 60°; 90° |
